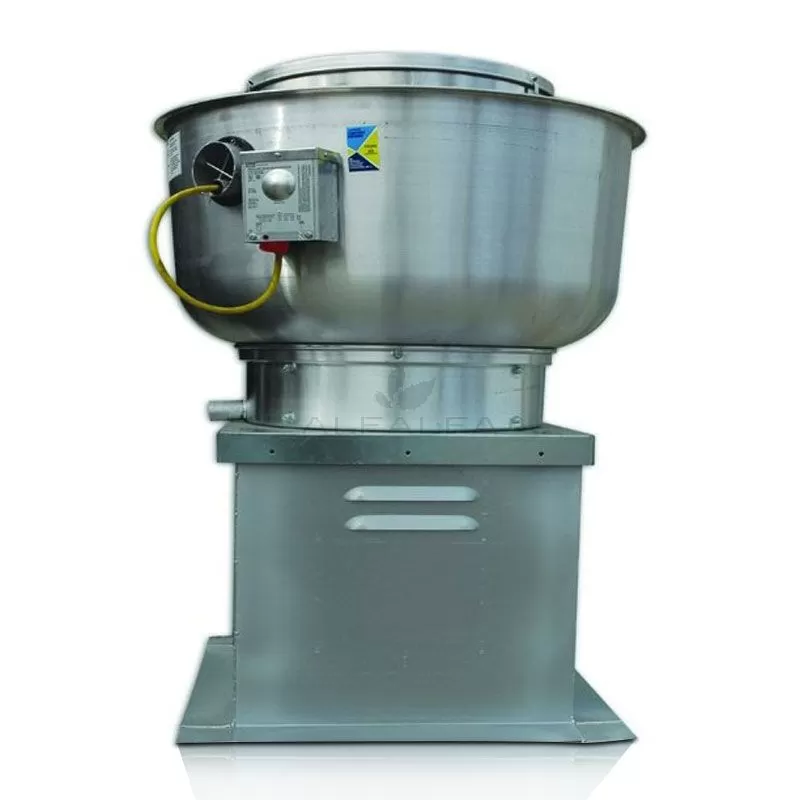

Salon Exhaust Fan - Roof Mounted

This roof-mounted fan pulls in harmful chemical fumes, odors, and other airborne contaminants from your salon and exhausts them out through the roof to keep your salon thoroughly ventilated, leading to cleaner air that is much more breathable. The direct drive upblast design is more efficient with fewer moving parts than other models, making it more reliable and less likely to need repairs. Made with strong, heavy gauge aluminum for reliable performance and durability even in harsh weather conditions.

Features of Salon Exhaust Fan-Roof Mounted:

• High-speed direct drive centrifugal upblast design
• Keeps your salon’s air clean and breathable and promotes a healthy workplace environment
• Volume: 1200 CFM
• Speed: 1000 RPM
• Variable speed control
• Housing constructed of heavy gauge aluminum
• Forces fresh air through motor to ensure long motor life
• Weatherproof safety disconnect switch
• Non-overloading wheel
• Vibration isolators
• Designed for continuous duty
• Permanently lubricated
• Single phase unit
• Corrosion resistant fasteners
• Thermal overload protection
• High heat operation (400˚F)
• Rated for restaurant and general ventilation applications
• Grease classification tested
• Made in the USA
• Must be installed by a licensed HVAC contractor

• Total quantity: 1 roof mounted exhaust fan
• Exhaust motor: Model no—48A17011045, 0.500 HP, 1 Phs, 115 V, 60Hz, 8.1 FLA, ODP (Open Drip Proof)
• Exhaust performance:
  • Volume: 1200 cfm
  • RPM: 1000
  • TS: 3600 ft/min
  • SP: 0.125” w.g.
  • BHP: 0.107
  • Discharge velocity: 456 FPM
  • Altitude: 0’
  • Ambient temp: 70˚F
• Exhaust installation information:
  • Unit main input: 10.2 Amps, MCA, 15 Amps MOP, 115 V, 14 AWG Wire Min.
  • Exhaust unit voltage: 1 phs 115 V 60Hz
  • SCCR: 10 kAmp
